China Rolle auf Parfümflaschen fabricant

fully automatic injection blow machine

Produktdetails:
Herkunftsort: Jiangsu, China (Festland)
Markenname: AMAN
Zertifizierung: CE
Modellnummer: AMB35
Zahlung und Versand AGB:
Min Bestellmenge: 1 Set / Sets
Preis: US $30,000-50,000 / Sets
Verpackung Informationen: Norm Export Verpackung
Versorgungsmaterial-Fähigkeit: 30 Set / Sets per Monat

Detailinformationen

Zustand: Neue Anwendung: Flasche
Plastik verarbeitet: PET, PP. Blasen-Art: Einspritzungsblasen
Automatische: Ja Spannung: customerized
Energie (W): 17,8 Kilowatt Maß (L*W*H): 3100*1100*2300 Millimeter
Gewicht: 2,5 t Hauptleistungsstärke: 15 Kilowatt
Elektrischer Heizungskontrollabschnitt: 3 Menge Max. theoretische Einspritzungskapazität: 158 cm3
Entleerung von Kreiszeit: 8 s Druck des Druckluftsystems: 1,2 Mpa
Formheizkraft: 2,8 KILOWATT Drehgeschwindigkeit des Schraubenstammes: 10--180 U/min
Plastifizierung von Kapazität: 12 g/s Garantie: 1 Jahr
Kundendienst erbracht: Übersee-Service-Center verfügbar Port: Chinas Port
Markieren:

flüssige Füllmaschine

,

FlaschenFüllmaschine

Produkt-Beschreibung

Injection Blow Molding Machine



Product Description

 fully automatic injection blow machine 0

Injection blow molding machine Features

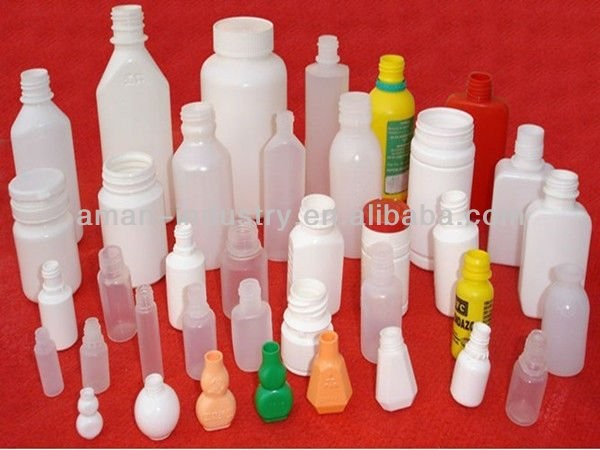

  1. Suitable bottle size: 3ml-1000ml
  2. Material: PP/PE/PS.
  3. High speed: cycle time control 9-15sec. on our injection blow molding machine.

Injection blow modling machine Advantage



1. The bottle blown by this machine has perfect neck formation. Dimension tolerance control is 0.2mm only. the neck is very smooth, no flash can be seen.

2. The bottle bottom is clean, only injection point can be seen, bottle weight tolerance is onl 0.1grm.

3. The bottle parting line is untouchable

4. Wall thickness is evenly distributed

5. No wastage at all

6. Production is high (the machine can control cycle time from 9-15sec.)

7. The bottle produced by this machine is suitable to pharmaceutical bottle, no human touch.



Injection blow molding machine Technical Parameters



NO.

ITEM

UNIT

DATE

1

Dia. of screw

MM

40

2

Max. retical capacity

Cm3

220

3

Total power for cylinder-heating

Kw

6.5

4

Clamping force of injection mold

Kn

350

5

Opening stroke

Mm

120

6

Clamping force of blow mold

Kn

30

7

Max. plate size of die (L*W)

Mm

300*200

8

Min. die thickness

Mm

180

9

Motor power

Kw

15

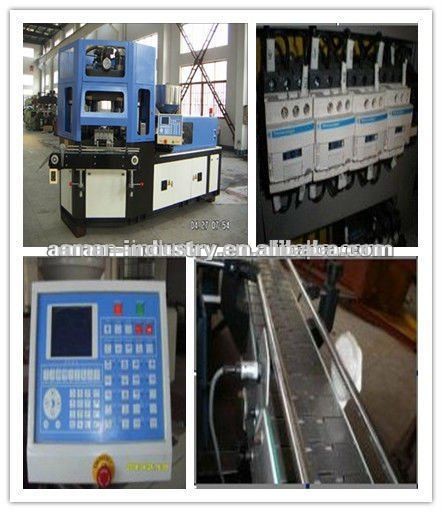

Injection blow molding machine Parts pictures



fully automatic injection blow machine 2



Injection blow molding machine Main Parts



Parts Name

Brand Name

hydraulic vale, electromagnetism valve, proportional valve.

YUKEN

air valve and air pipe connector.

FESTO

hydraulic hose

ISR

sealing Parts

SEALTECH

hydrolic motor

INTERMOT

microcomoputer controller

TAIWAN

contactor and relay.

SCHNEIDER

short-circuit equipt

GMERLIN GERIN

air tube

CAMOZZI

conveyer motor

TAIWAN

main motor

BEIDE

proximity switch.

TAIWAN



Packaging & Shipping

 fully automatic injection blow machine 4



Company Information

 fully automatic injection blow machine 6



FAQ



Q1:What’s your guarantee or the warranty of the quality if we buy your machines?

A1:We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.



Q2:How can I install my machine when it arrives?

A2:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines. also we will send you a machine manual for your reference.



Q3:How about the spare parts?

A3: we will offer you a spare parts list for your reference
